Megadialer IVR Module

Module Overview

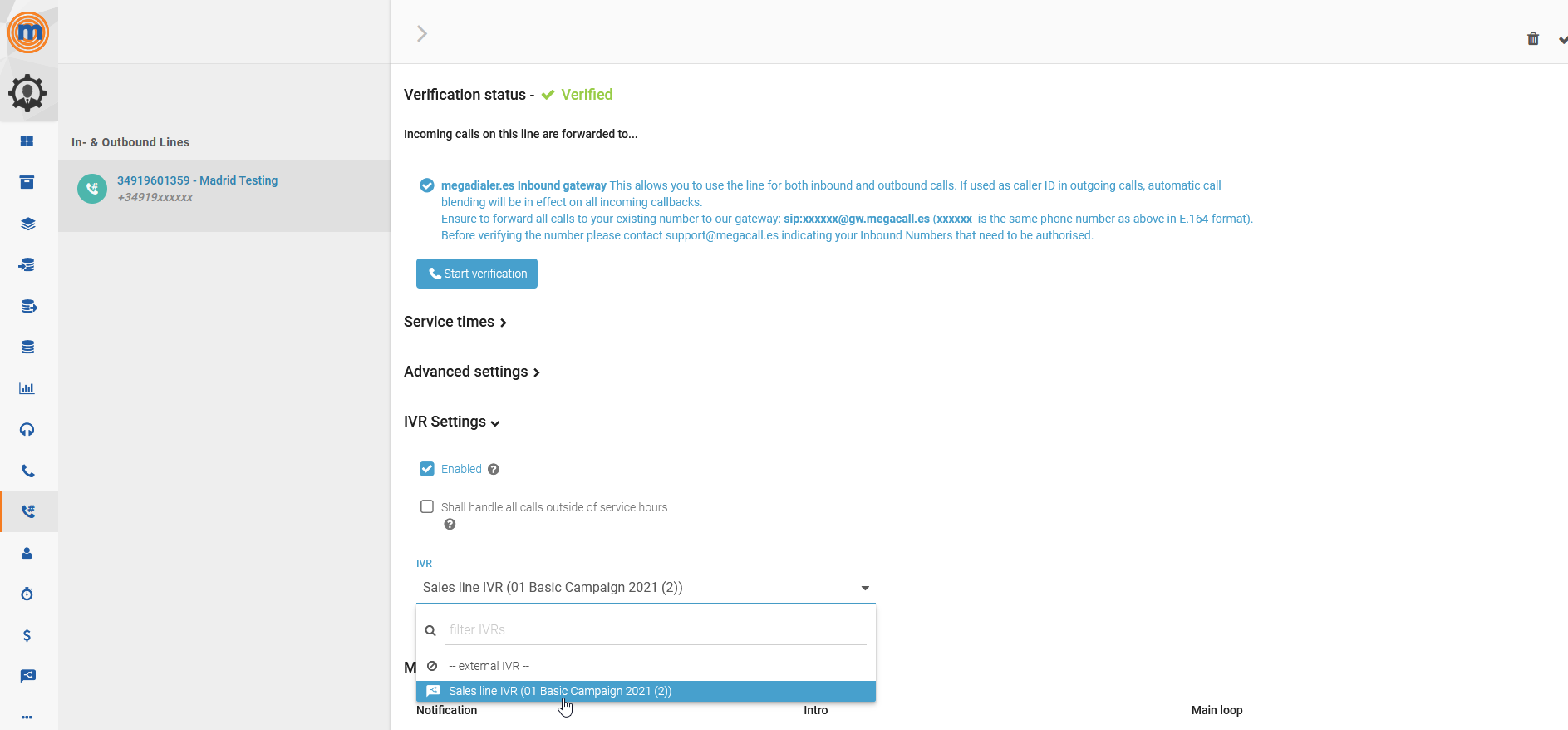

Custom IVRs (Interactive Voice Response) can be created within the Megacall IVR module. IVRs can be assigned to a campaign (1). The assignment is for organisational purposes only and has no technical impact on usage.

IVR configuration is done by selecting an already created IVR (2) or by creating a new IVR.

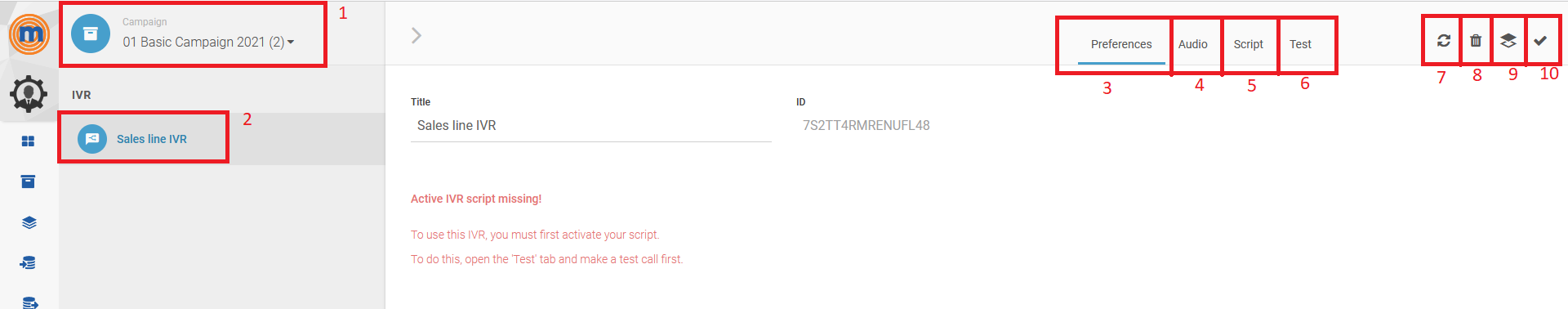

The configuration page consists of 4 tabs. On the "Preferences" page (3) a title can be specified. The "Audio" page (4) is used to create or upload audio files to be used. The "Script" page (5) contains an editor, where the IVR process can be scripted. On the "Test" page (6) you can make a test call to validate that your IVR works correctly.

Additionally you have a "refresh" button (7) to reload the IVR settings. Deletion of your IVR can be done by pressing the "delete" button (8). You can make a copy of the selected IVR (9) and of course you can save your configuration (10).

Audio Editor

Before configuring a new IVR, you should consider the exact process. Once you know how the IVR should interact with the caller, you can create or upload the necessary audio files. The IVR module supports dynamic switching between different audio variants (1). This can be used, for example, to provide your IVR for different languages. The required language variant can be determined, for example, using the caller ID. You can find more on this topic, e.g. how to switch the language variant dynamically, in the section "IVR script".

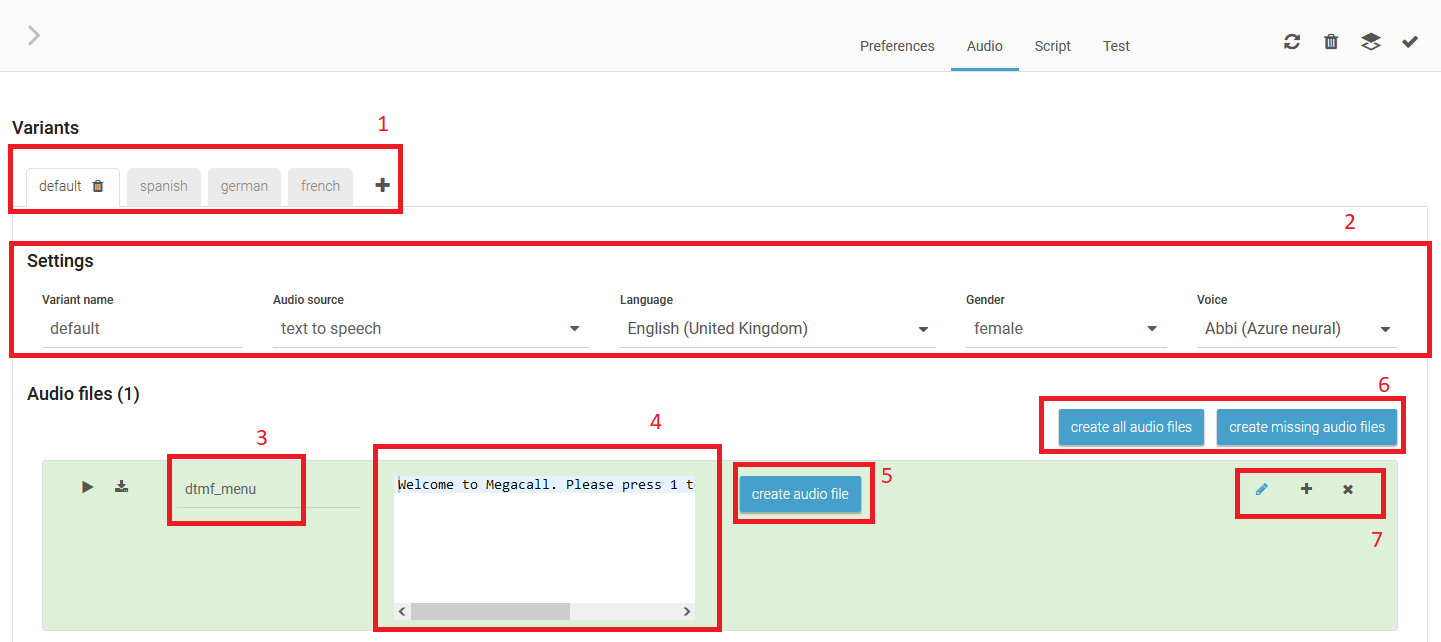

The "Settings" section (2) is used to configure your prefered way to create the audio files for the selected variant. You can choose between three different audio sources:

Choose file upload if you already have the audio files and just want to upload them

Choose recording if you want to create the audio files by recording your phrases using a microphone

Choose text to speech if you want the phrases to be generated from text

After you have configured your preferred audio source you can continue to create the actual audio files. Click on the Plus-button (7) to create a new audio file. Give it a meaningful name (3) and either enter a text (4) to generate audio (5) or upload your existing audio file(this option will be visible if you select "file upload"). There is also an option to create all audio files at once (6). This is especially helpful if you already created a complete variant and want to translate it into another language. You can add, remove and sort your audio files using the buttons on the right (7). Sorting is also possible via drag and drop.

IVR script

The IVR script allows you to control the flow of your IVR. When you create a new IVR, you already have the choice between different templates, which contain a functioning basic script that can be extended according to your requirements.

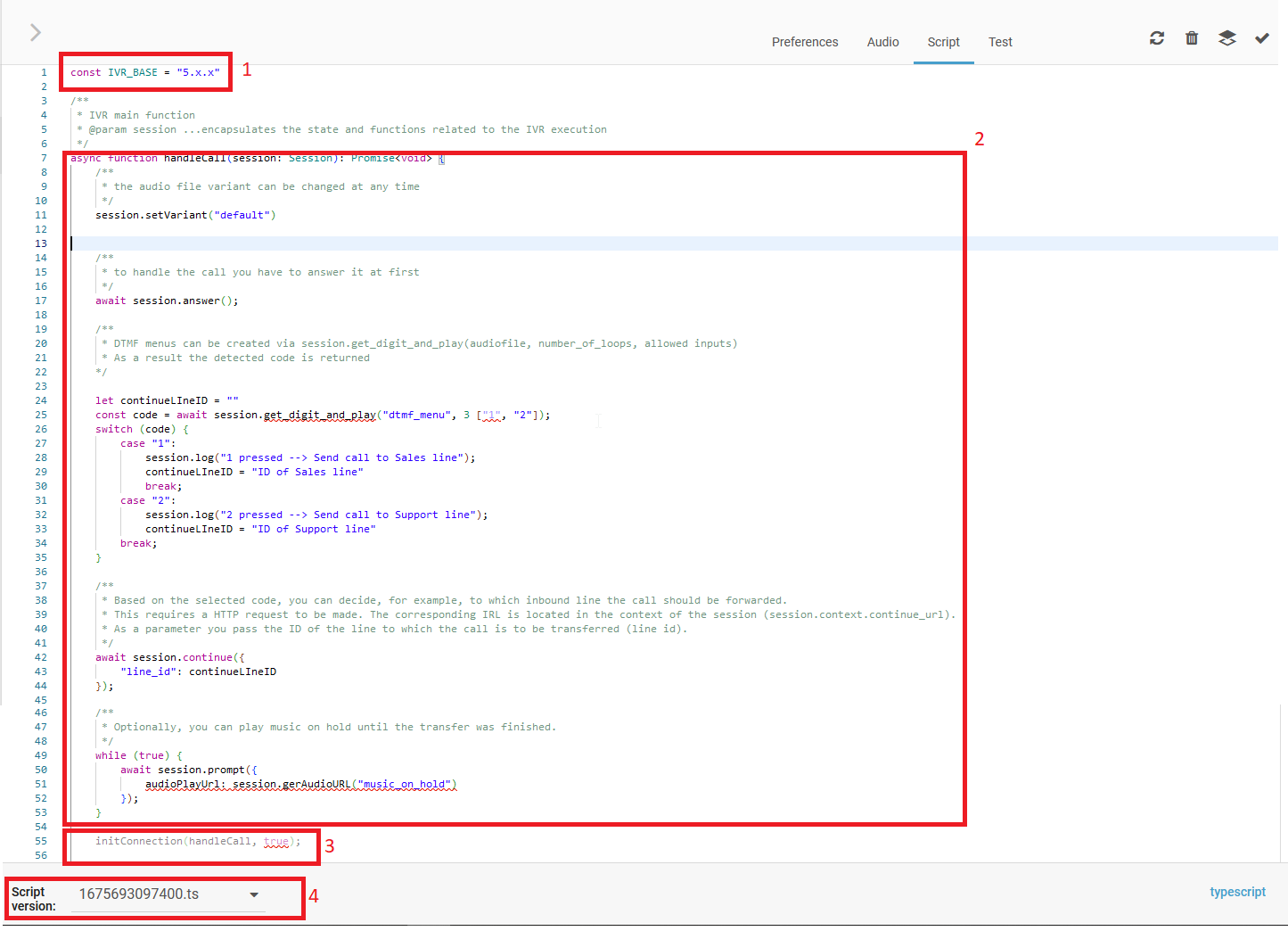

At the top of every IVR script you have to specify the IVR_BASE version to be used (1). This will ensure that your script will still work correctly even after new functions are introduced to the base script. You can just leave it at the default value.

Within the function handleCall(session: Session) the actual sequence of your IVR must be programmed (2). More about how to program your IVR can be found in section "Scripting the IVR session".

At the bottom of every script there needs to be a call of the function initConnection (3). This simply ensures that your handleCall function is called on IVR start.

The last point to mention is that your IVR scripts are versioned. Every time you activate a specific version of your IVR a new version number is automatically created for you. (4) This will give you a history of your changes to the IVR script. If you want to load an earlier version of your script for editing, you can select the desired version via the dropdown menu (4). The currently active script of your IVR is marked with the addition "active".

Scripting the IVR session

The programming language used for IVR scripts is Typescript. If you do not have any experience with Typescript yet, please have a look at the TypeScript Handbook.

All basic functions to control the flow of your IVR are available via the session object, that is available in the handleCall(session: Session) function.

The first thing that has to be done is to answer the incoming call. This will connect the calling person to the IVR.

await session.answer();

The last thing that has to be done is to forward the connected call either to the inbound line the call was initially addressed to

await session.continue();

or to another of your inbound lines

await session.continue({
  "line_id": continueLineID
});

These are the most basic steps an IVR script has to do. Your IVR will already work, but is of course not very useful yet.

One of the first functionalities you might want to have is a DTMF menu, where the IVR prompts the caller for some input and forwards the call to the correct inbound line, based on the callers decisions. There is already a predefined IVR script called "DTMF menu", which contains a very basic DTMF menu.

let continueLineID = ""
    const code = await session.dtmfPrompt({
        audioFile: "dtmf_menu",
        maxRetries: 3,
        allowedDigits: ["1", "2"]
    });
    switch (code) {
        case "1":
            session.log("1 pressed --> Send call to Sales line");
            continueLineID = "ID of Sales line"
            break;
        case "2":
            session.log("2 pressed --> Send call to Support line");
            continueLineID = "ID of Support line"
            break;
    }

DTMF menus can be created by using the following function:

session.dtmfPrompt(audioFile: string, maxRetries: number, allowedDigits?: string[])

• audioFile specifies the name of the audio file to be played to the caller. Please refer to the section "Audio editor" to learn more about how to create audio files.
• maxRetries specifies the number of times the IVR should repeat the audiofile in case the caller made an invalid input
• allowedDigits specifies which inputs are allowed. In most cases it will be something like ["1", "2", "3"]

As a result you will receive the code (digit) that the caller has entered. Based on that code you are now able to forward the call to the correct inbound line using the aforementioned session.continue().

Multistep DTMF menus can be easily created by programming several session.dtmfPrompt() in a series.

Testing your IVR

To activate your IVR script and use it for handling your inbound calls in Megadialer a test call is required. After the call has been hung up a call log will be displayed (1). It will display all your log messages and also script errors, in case you made any mistakes while programming your IVR script.

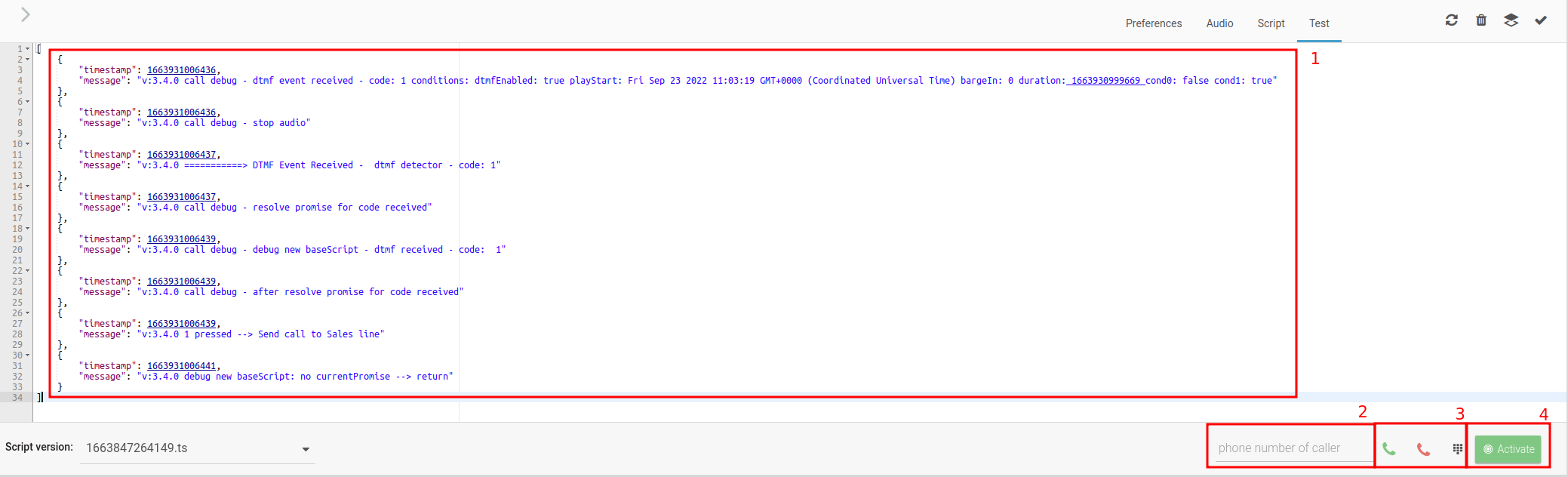

You have also the option to specify a custom caller ID (2), e.g. to simulate a call from a foreign country. There is "call", "hangup" and "DTMF" button (3). If you have tested your IVR and are satisfied with the result you can "activate" your new IVR script (4). This will automatically create a new version of your script and push the current version into production. From now on all incoming calls will be handled by your activated script.

Synchronous functions

All synchronous functions return immediately.

log(...data:any): void;

• Print log statement
• Arguments:
  • data... message to be logged

error(...data: any): void;

• Print error statement
• Arguments:
  • data... message to be logged as error

getAudioURL(filename: string): string;

• Creates a fully qualified URL from the passed filename
• Arguments:
  • filename... the name of the audio file
• Result:
  • a fully qualified URL to the file

setVariant(variantname: string): void;

• Change the audio variant to be used for the IVR
• Arguments
  • variantname... the name of the variant

Asynchronous functions

Asynchronous functions execute longrunning tasks like e.g. HTTP requests. If the subsequent control flow of your IVR depends on the result of the executed function then you have to use the keyword await. If you have never heard about asynchronous programming before then please refer to Async/await or any other information source of your choice.

async answer(): Promise<void>;

• Answer the incoming call
• This function has to be called at a very early stage of your program to start the interaction with the calling party.

async callStatus(): Promise<any>;

• Returns the current status data of the call as JSON object (e.g. calling number)
• Example result:

{
    "id": "77b384529d252ff4d905334790dc58b5",
    "uuid": "6ec27ecc-6b39-402f-b8ec-57eedeb28e57",
    "calling_number": "441134960000",
    "called_number": "14255550123",
    "state": "waiting",
    "call_time": "2022-09-25T06:05:28.674Z",
    "line_id": "XAZRTBSUCVLLX",
    "tenant_id": "ax0v913b",
    "queue_position": 0,
    "estimated_wait_time": 0
}

const IVR_BASE = "4.x.x" // IVR_BASE version has to be at least "4.x.x"
const AUDIO_UTILS = "1.x.x"

let result = await session.voicePrompt({
  audioFile: "audio_prompt"
});
if (result.audio) {
  let wav = await audioUtils.encodeWAV(result.audio)
  await fetch("https://your-webservice.com/audio/recording.wav", {
    method: "POST",
    headers: {
      'Content-Type': 'application/octet-stream'
    },
    body: wav
  })
}

let result = await session.voicePrompt({
  audioFile: "audio_prompt"
});
if (result.audio) {
  let mp3 = await audioUtils.encodeMP3(result.audio)
  await fetch("https://your-webservice.com/audio/recording.mp3", {
    method: "POST",
    headers: {
      'Content-Type': 'application/octet-stream'
    },
    body: mp3
  })
}

let result = await session.voicePrompt({
  audioFile: "audio_prompt"
});
if (result.audio) {
  let ogg = await audioUtils.encodeOgg(result.audio)
  await fetch("https://your-webservice.com/audio/recording.ogg", {
    method: "POST",
    headers: {
      'Content-Type': 'application/octet-stream'
    },
    body: ogg
  })
}

const IVR_BASE = "5.x.x"

/**
 * IVR main function
 * @param session ...encapsulates the state and functions related to the IVR execution
 */
async function handleCall(session: Session): Promise<void> {
    /**
     * the audio file variant can be changed at any time
     */
    session.setVariant("default")

    /**
     * to handle the call you have to answer it at first
     */
    await session.answer();

    /**
     * optionally wait 10 ms to ensure answer command is done
     */
    await session.sleep(10);

    /**
     * check whether this is the initial call or a transferred call
     */
    if (!session.isTransferCallLeg()) {
        await handleInitialCallLeg(session)
    } else {
        await handleTransferCallLeg(session)
    }
}

/**
 * Handles the initial call of this IVR
 */
async function handleInitialCallLeg(session: Session): Promise<void> {
    /**
     * Transfer this call to a pstn target
     */
    var transfer_result = await session.transfer({
        targetAddress: "pstn:+123456789",
        callerId: "15555555555", // caller-id has to be one of your registered phone numbers in Megadialer (if omitted the called number of this call will be used)
        redirectToIvr: true // this parameter indicates, that the transfer target should be handled by this IVR
    });
    if (transfer_result.error) {
        session.log(`error while starting transfer: ${transfer_result.error}`);
        session.hangup(16, "transfer failed");
        return;
    }

    /**
     * Additionally transfer this call to a second sip target
     */
    transfer_result = await session.transfer({
        targetAddress: "sip:target@my-target-sip-provider.com",
        callerId: "15555555555",
        redirectToIvr: true
    });
    if (transfer_result.error) {
        session.log(`error while starting transfer: ${transfer_result.error}`);
        session.hangup(16, "transfer failed");
        return;
    }

    session.log(`transfer started`);
    await session.playAudio("transfer_progress", true);// play message in a loop to the caller that the transfer is in progress (until it will be bridged to the transfer target)

    // wait 30 second (until transfer was eventually established)
    await session.sleep(30000)
}

/**
 * Handles the call leg that was created via session.transfer(...)
 */
async function handleTransferCallLeg(session: Session): Promise<void> {
    /**
     * check whether this call was already bridged to the other call leg
     */
    let parentCall = session.getParentCallObject();
    if (!parentCall) {
        session.log("no parent call");
        await session.hangup(16, "call was answered by other party");
        return;
    }
    session.log("parentCall: " + JSON.stringify(parentCall));

    await session.playAudio("transfer_message", true); // this message is played to the transfer target
    await session.sleep(5000) // optionally wait 5 seconds, so that the transfer target can hear the message
    await session.bridge() // this call connects the initial call with this transfer target
}

/**
 * This handler is beeing called after the call ended
 * @param session ...encapsulates the state and functions related to the IVR execution
 */
 async function handleHangup(session: Session): Promise<void> {
    session.log(`hangup received`);
}

initConnection({
    onCallStart: handleCall,
    onCallEnd: handleHangup
});
